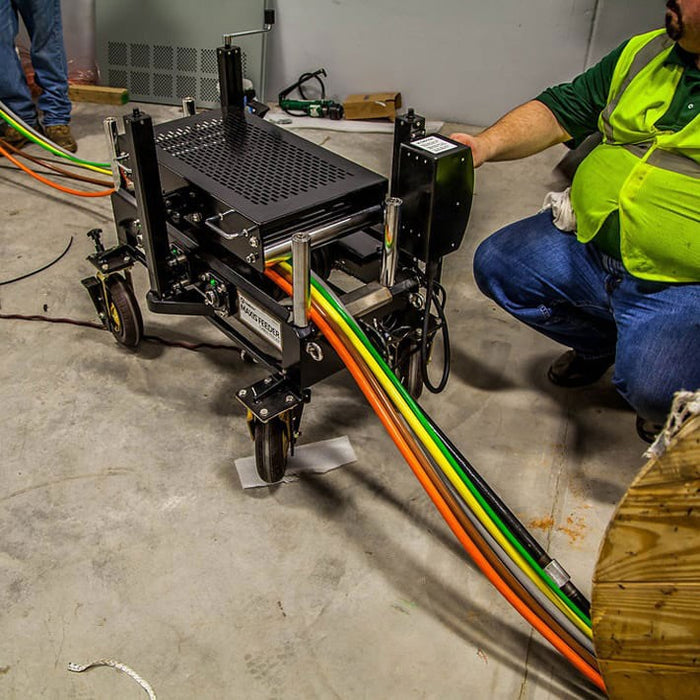

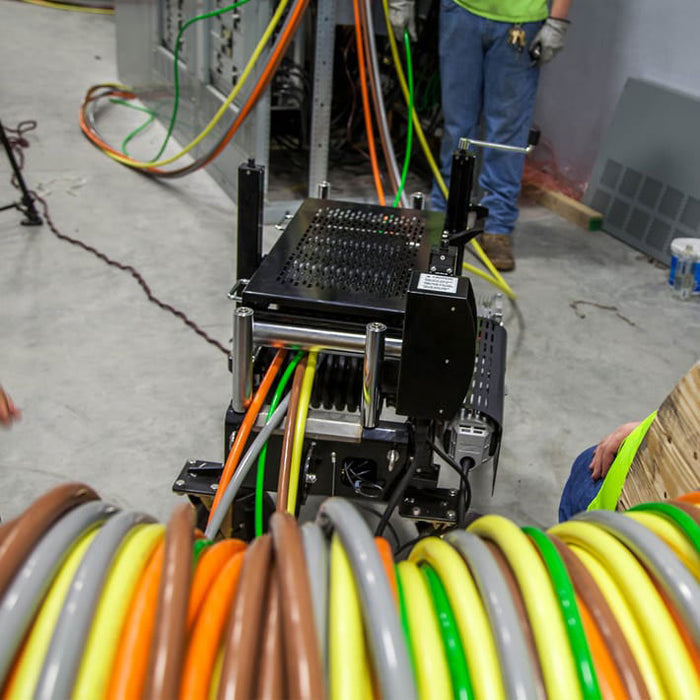

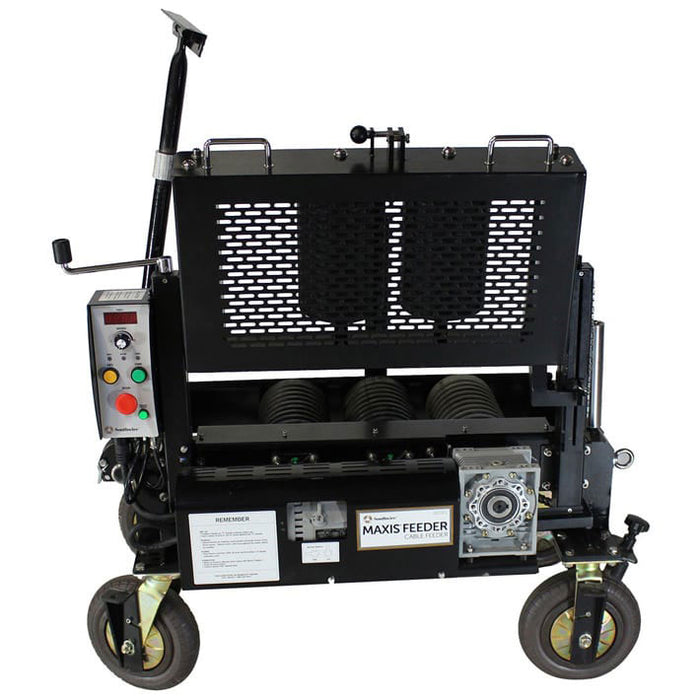

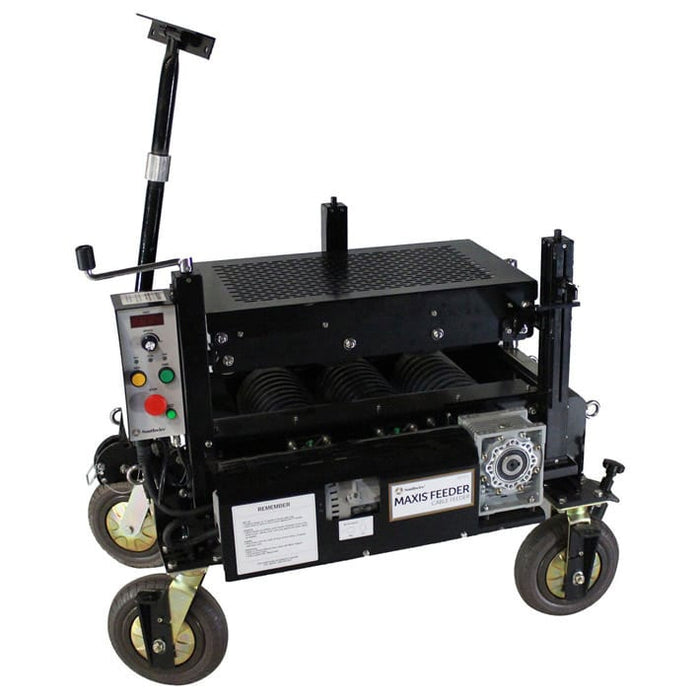

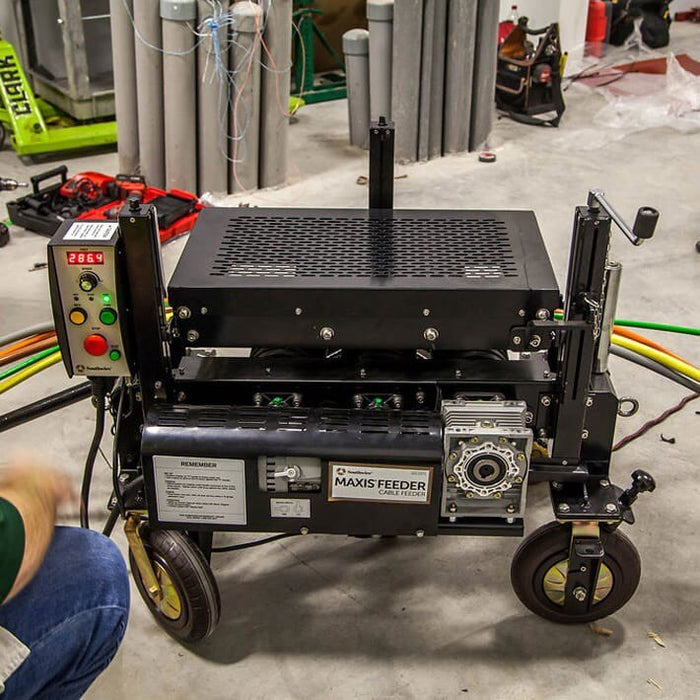

Southwire MCF-01 Maxis Cable Feeder

Product Description

INCLUDES:
• (1) Cable feeder

FEATURES:
• Designed and built specifically to accommodate Southwire® SIMpull® wire
• Forward and reverse, variable speed, feeds up to 30 fpm.
• May be used with Southwire® Triggers™ Wireless Safety switch System remote foot switches for simultaneous feeder/puller control
• Solid rubber tires and swivel casters for easy jobsite maneuverability and will never go flat
• Digital footage meter allows easy monitoring of approx. conductor length being fed
• Uses grooved serpentine roller design with increased surface area for increased traction force (no pneumatic tires
• Maximum traction force: single conductor 800 lbs, 4 Conductors 1,600 lb capacity on SIMpull THHN 500 MCM
• Cable capacity: 8 x 250 MCM, 6 x 500 MCM, 5 x 750 MCM

SPECIFICATIONS:
• Model #: MCF01
• Southwire Stock #: 58133301
• Description: Cable Feeder
• Height: 35"
• Width: 26"
• Weight: 366 lbs
• Length: 44"


MCF01 Designed and built specifically to accommodate Southwire® SIMpull® wire, the Maxis® Feeder is a revolutionary way to feed wire quickly and efficiently.
